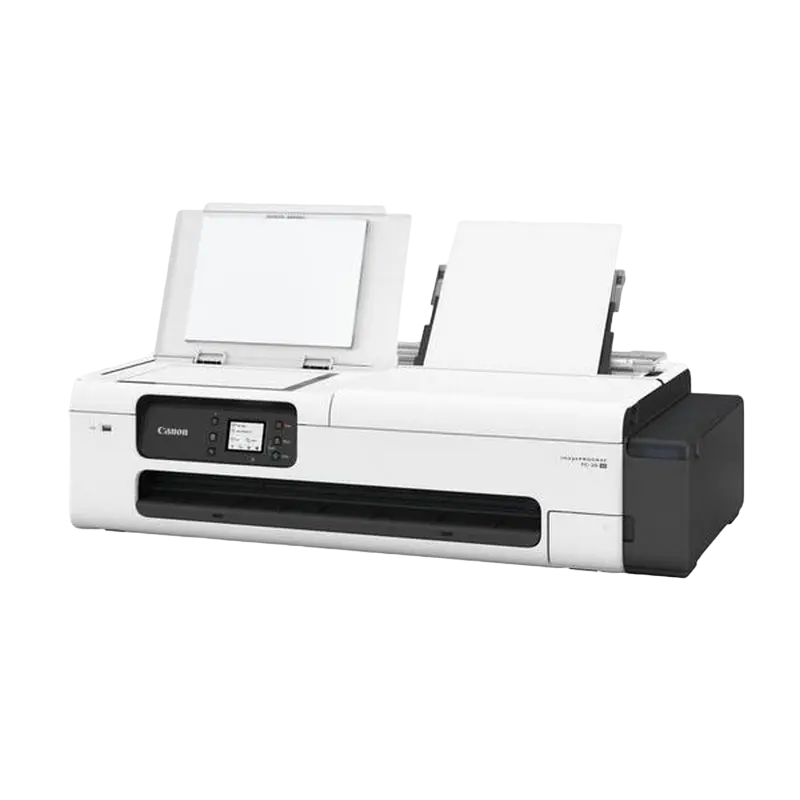

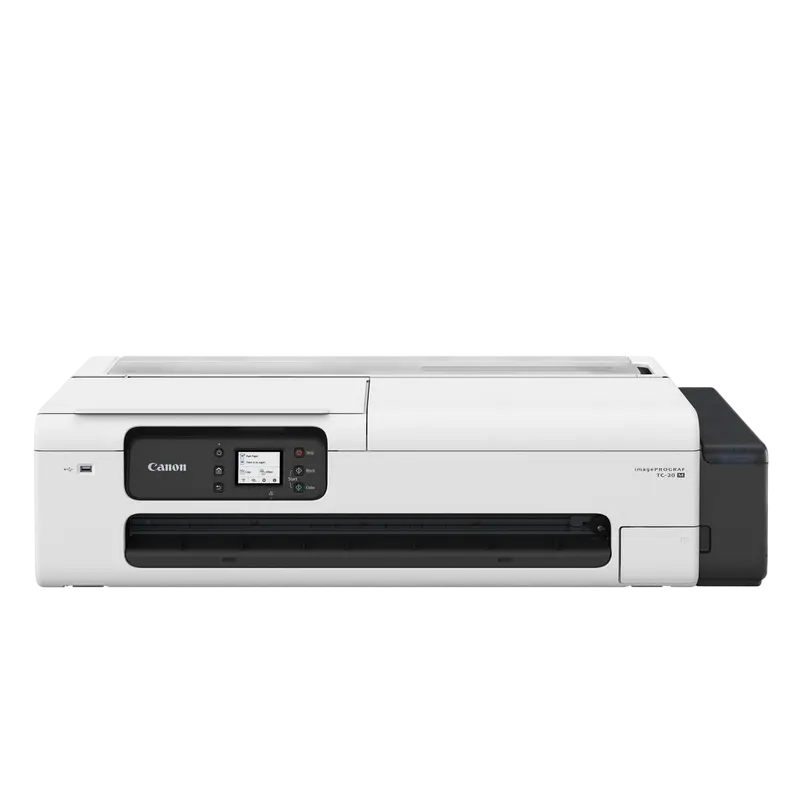

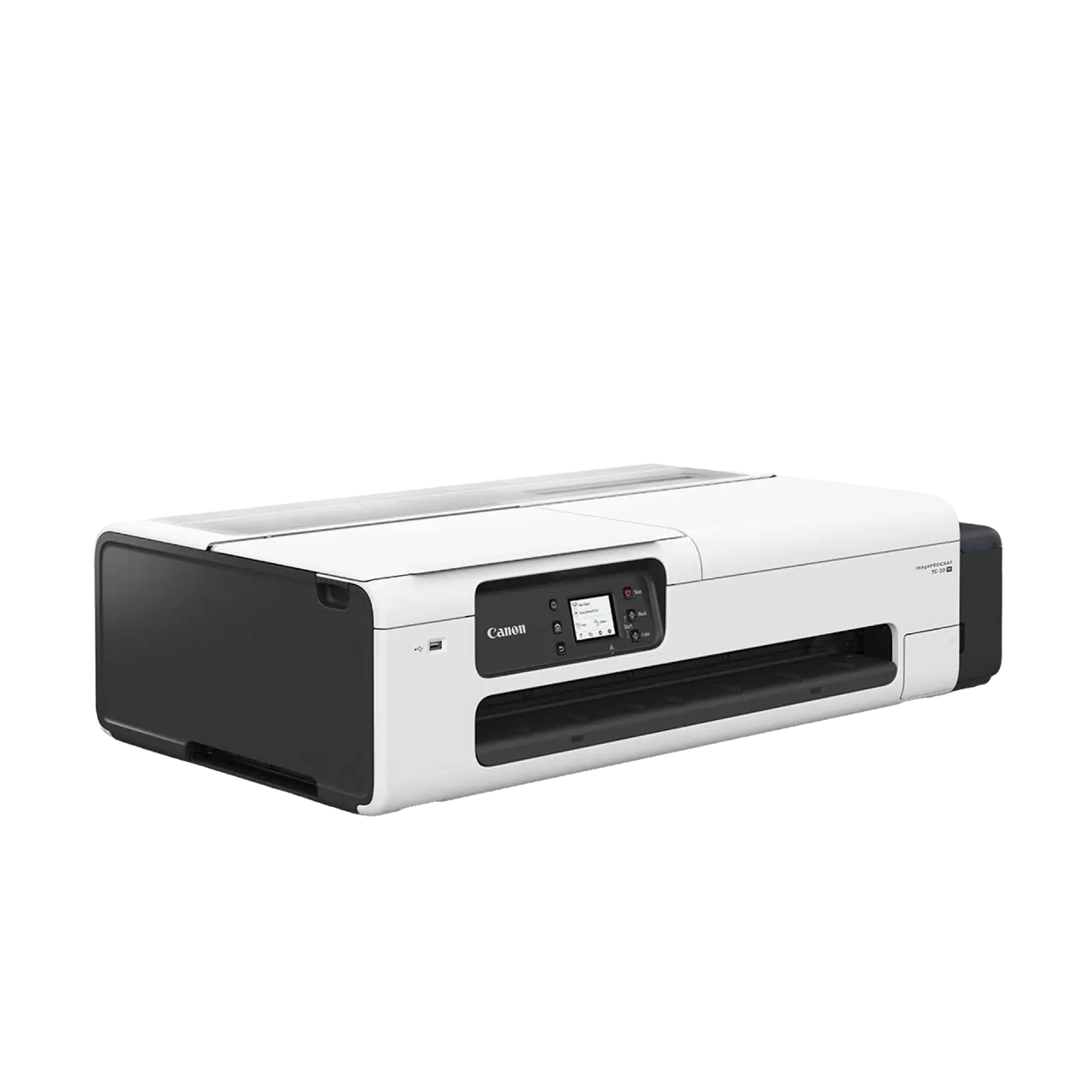

Canon imagePROGRAF TC-20 Plotter
15.775,00 MDL
In stock
Key specs
- Technology
- Inkjet with a FINE print head / precision printing.
- Number of colors
- 4 colors — Black, Cyan, Magenta, Yellow (pigment).
- Maximum print resolution
- 2400 × 1200 dpi for text and detailed graphics.
- Number of nozzles
- 4,352 nozzles (1,280 black + 1,024 for each of C/M/Y).
- Line accuracy
- ±0.1% or better for technical drawings.
- Free delivery in Chișinău from 500 MDL
- Outside Chișinău: 70–300 MDL
- Official 24-month warranty
- 14-day returns
- Installments via Iute Credit and Microinvest
Payment
CashCard on delivery / in showroomBank transfer
Questions about this product?
We help you choose and check compatibility.
Description
The Canon imagePROGRAF TC‑20 is a large-format inkjet plotter designed for color printing of large-size documents such as technical plans, CAD drawings, posters, banners and marketing materials up to A1 (~24″).
Approximate speeds
- ~32 s for A1 monochrome CAD drawings (Draft).
- Other modes may vary depending on the media and quality selected.
Media feed
- Roll: top loading, front output.
- Cut sheets: Auto Sheet Feeder (e.g. 100 sheets A4 / 50 A3).
Specifications
Printing
- Technology
- Inkjet with a FINE print head / precision printing.
- Number of colors
- 4 colors — Black, Cyan, Magenta, Yellow (pigment).
- Ink type
- Pigment (Canon PFI‑050) for water resistance and highlighter compatibility.
- Maximum print resolution
- 2400 × 1200 dpi for text and detailed graphics.
- Number of nozzles
- 4,352 nozzles (1,280 black + 1,024 for each of C/M/Y).
- Line accuracy
- ±0.1% or better for technical drawings.
Paper & media handling
- Maximum format
- up to A1 (610 mm / 24″ width).
- Roll media width
- 12″–24″ (297 – 610 mm).
- Maximum print length
- up to ~4 m per roll.
- Media thickness
- 0.08 – 0.28 mm (roll or cut sheet).
- Borderless printing
- on rolls — yes.
Connectivity
- USB
- USB‑B 2.0 (standard).
- Network
- Ethernet (10/100 Base‑T) for network connection.
- Wireless
- Wi‑Fi (IEEE 802.11b/g/n) — wireless printing.
- Protocols & print language
- SGRaster (Swift Graphic Raster) for high data throughput.
Performance & memory
- RAM
- 1,024 MB (1 GB) standard for large jobs.
- OS compatibility
- Windows and macOS (modern versions).
- Power consumption
- ~28 W (operating).
- Noise level
- ~42 dB(A) while operating.
Physical characteristics
- Dimensions
- ~968 × 545 × 395 mm (W × D × H).
- Weight
- ~40 kg (unit without optional stand).
Consumables & maintenance
- Ink cartridges/bottles
- 4 x 70 ml (PFI‑050) included as a starter set.
- Cost per page
- moderate cost for large-format printing, the pigment variant offers durability.
- Other consumables
- maintenance cartridge, PF‑08 print head, etc. (optional).
- Brand
- Canon
