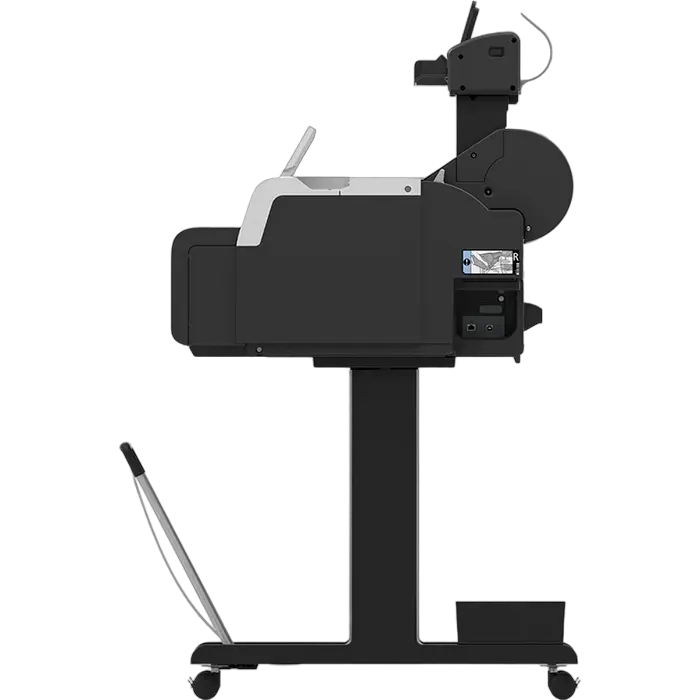

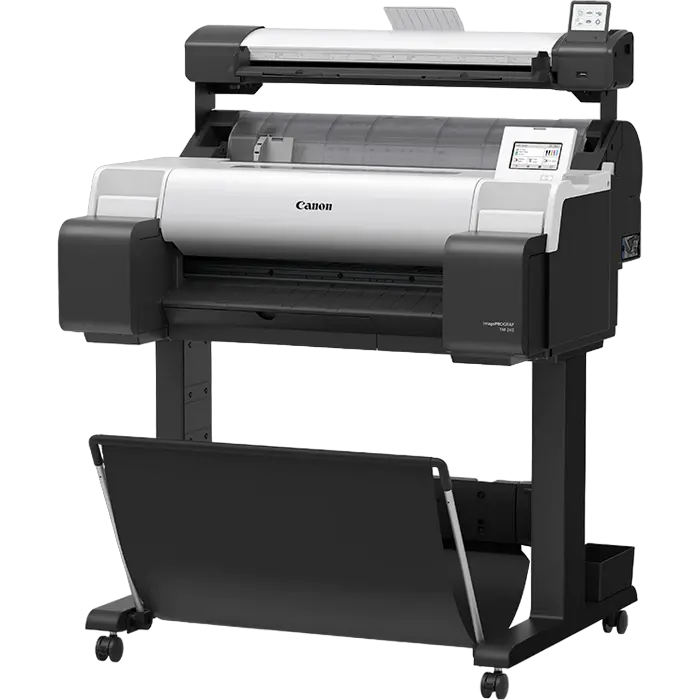

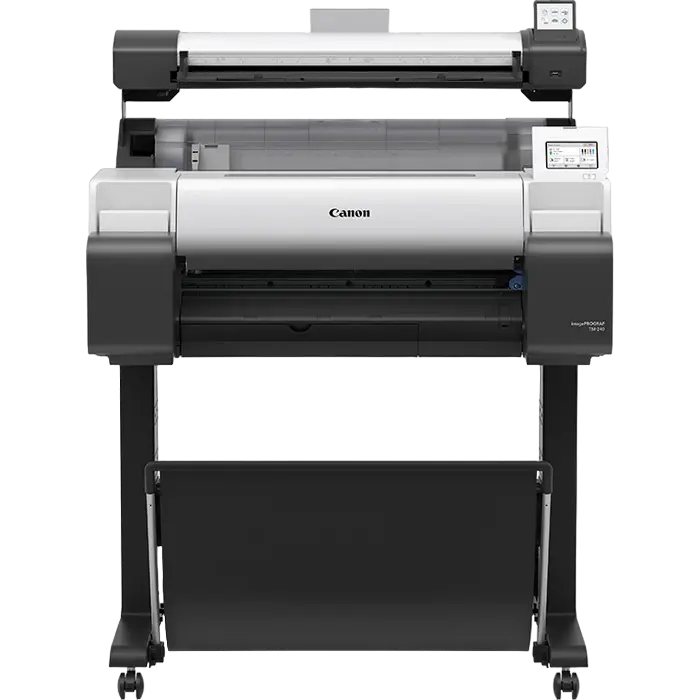

Canon imagePROGRAF TM-240 Plotter

Device type

Large-format plotter — high-quality color printing for CAD, posters, plans and displays up to A1 (24″).

Print technology

Canon Bubblejet on Demand with pigment ink, 5 colors (Matte Black, Black, Cyan, Magenta, Yellow).

Compatible series

Canon imagePROGRAF TM‑240 — part of Canon’s professional large-format “TM” printer lineup.

Typical use

CAD drawings, advertising posters, displays, presentation materials, maps, GIS.

Printing

Maximum resolution

2400 × 1200 dpi — sharp text and fine detail in color and CAD prints.

Number of nozzles

15,360 total nozzles (MBK: 5120; BK, C, M, Y: 2560 each).

Ink droplet size

min. 5 picoliters.

Inks

Canon PFI‑030 / PFI‑031 pigment inks (UV- and water-resistant, suitable for outdoor materials in certain environments).

Number of colors

5 individual.

Media type

paper roll or cut sheets, front-loading — borderless printing on rolls.

Average supported width

up to 24″ / 610 mm.

Media thickness

0.07 – 0.8 mm for rolls or cut sheets.

Maximum roll length

up to ~18 m.

Performance & productivity

RAM

2 GB for processing large jobs.

Control

4.3″ color touch LCD for configuration and direct monitoring.

Line accuracy

±0.1% or better (drawing detection and print accuracy).

Approximate speeds (A1 CAD)

~0:23 min (fast mode), ~0:51 min (standard).

Connectivity

Ports

USB‑B (Hi‑Speed), Gigabit Ethernet for networking.

Wireless

Wi‑Fi (802.11b/g/n).

Protocols & print languages

• SGRaster
• HP‑GL/2, HP‑RTL, JPEG, CALS G4.

Media handling

Media handling

• Roll with front feed
• Cut sheet with front feed and front output
• Automatic media cutting (cutter).

Borderless printing

yes (on rolls).

Power & environment

Power consumption

~59 W operating; standby ~1.6 W; off ~0.1 W.

Noise level

~39 dB(A) — quiet for office environments.

Environmental certifications

EPEAT Gold (reduces power consumption and environmental impact).

Dimensions & Weight

Approximate dimensions

~978 × 868 × 756 mm (W × D × H) — varies depending on stand/options.

Weight

~50–50.9 kg.

Software & additional features

Included software

• Direct Print Plus — easy printing from various file types.
• Free Layout Plus — poster and visual material design.
• PosterArtist Lite — poster creation.
• Canon PRINT Inkjet/SELPHY — mobile printing.
