Product type: Set of 2 rubber tyres (sleeves) for rebuilding the paper feed and separation system. A highly cost-effective solution that avoids buying complete plastic assemblies, replacing only the parts subject to physical wear.

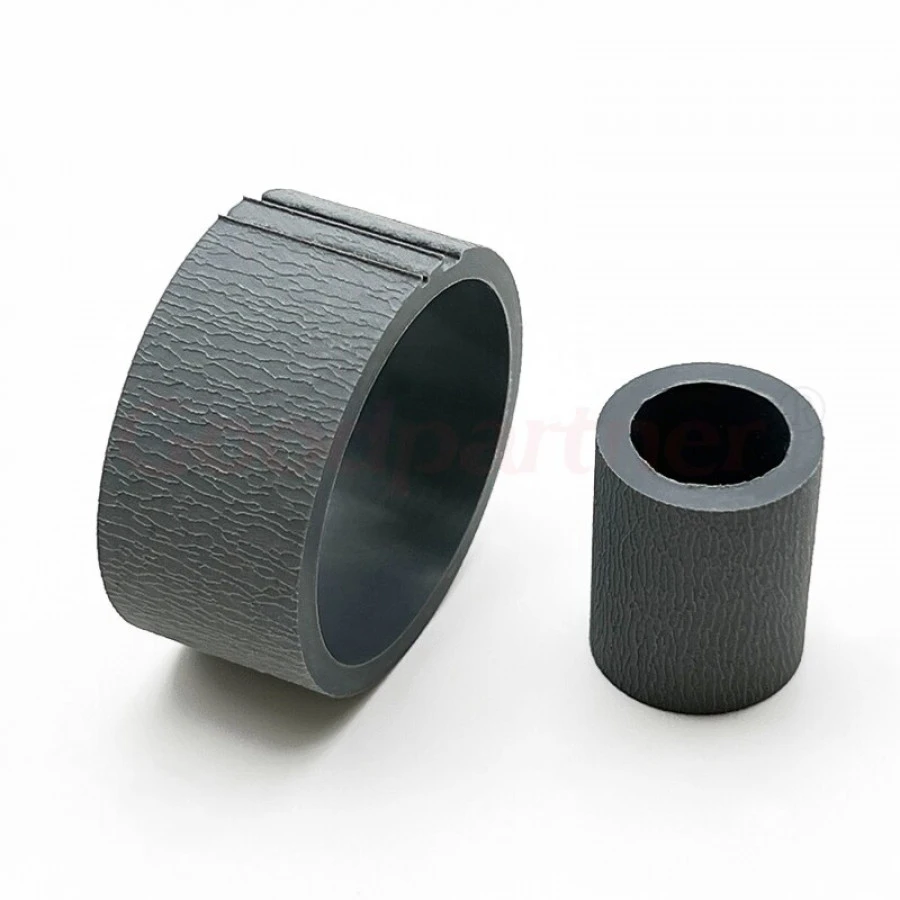

Kit Contents
- Large Tyre (Pick-up / LD Roller Tyre)
- fits on the main upper shaft that initiates pulling the sheet from the tray.
Small Tyre (Separation / Retard Roller Tyre): fits on the secondary lower shaft (spring-loaded) inside the tray, whose job is to stop the second sheet.
Technical Specifications
- Product name
- Paper Feed Roller Tyre Set
- Condition
- New, premium compatible products
- Material
- High-density technical elastomer rubber
- Installation
- Requires removing the old tyres from the printer’s plastic supports and stretching the new ones into place (medium-difficulty procedure)
Equipment Compatibility
Designed specifically for the legendary 6-color A4 photo printers from the Stylus Photo and EcoTank (CISS) ranges:
- Epson EcoTank (CISS) Photo
- L800, L805, L810, L850
- Epson Stylus Photo
- R270, R290, R295, R390, T50, T60, P50
- Epson Stylus Photo All-in-One
- PX650, PX660, PX700W, PX710W, PX720WD, PX730WD, PX800FW, PX810FW, PX820FWD, PX830FWD
